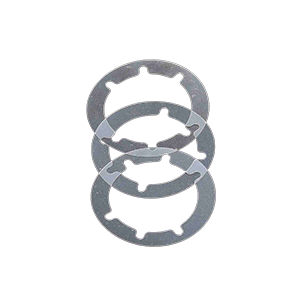

Two-Plate Ring | VLM-60

RELATED PRODUCTS

Features

  • Multi-turn encoder – 17 bit single + 15 bit multi-turn resolution
  • Low profile (<8 mm)
  • High resolution and precision
  • Hollow shaft
  • Adaptable resolution
  • Environmentally durable
Talk to an expert
OD
60 mm
ID
25 mm
Height
8 mm
Weight
15 gr
Resolution
17 bit
Accuracy
±0.010°

Technical Data

Ordering Code

  • Technical Drawing

  • General

    Angular resolution
    17 bit
    Measurement range
    Multi-turn +15 bit
    Maximum tested static error
    ±0.015°
    Extended accuracy static error
    ±0.010°
    Maximum operational speed
    4,000 rpm
    Measurement range
    Multi-turn
    Rotation direction
    Adjustable CW/CCW (Default same direction from bottom side of the encoder
  • Mechanical

    Allowable mounting eccentricity
    ±0.1 mm
    Allowable axial mounting tolerance
    ±0.1 mm
    Rotor inertia
    1,996 gr · mm²
    Total weight
    15 gr
    Outer diameter / Inner diameter / Profile
    60 / 25 / 8 mm
    Material (stator, rotor)
    FR4
    Nominal air gap (stator, rotor)
    0.6 mm
  • Electrical

    Supply voltage
    5V ± 5%
    Current consumption
    <100 mA
    Interconnection (default)
    Connector
    Battery type
    CR1025SM
    Backup battery life
    36 months in typical conditions
    External Battery supply voltage (Optional)
    3.3V +/-10%
    Interface
    SSi
    Output code
    Binary
    Serial output
    Differential RS-422
    Clock
    Differential RS-422
    Clock frequency
    0.1 ÷ 5.0 MHz
    Position update rate
    35 kHz (Optional - up to 375 KHz)
  • Environmental

    EMC
    IEC 6100-6-2, IEC 6100-6-4
    Operating temperature
    -20°C to +65°C
    Storage temperature
    -40°C to +100°C
    Relative humidity
    98% Non condensing
    Shock endurance
    40 g for 11 ms
    Vibration endurance
    20 g 10 – 2000 Hz
    Protection
    IP 40
VLM-60 ordering code
