VLX-60

The Netzer VLX-60 Absolute Rotary Encoder delivers up to 22-bit resolution with accuracy reaching 0.01 mdeg, all in an ultra-thin (<8 mm) and lightweight (<16g) form factor. Its contactless capacitive technology ensures long-term reliability with no mechanical wear, making it ideal for aerospace, robotics, and high-end automation.

Its inherently hollow, low-mass design simplifies integration, reducing system inertia and enhancing overall performance. Who else delivers this level of precision in such a compact package?

Talk to Expert

Download Assets

Features

Outstanding accuracy in high-precision rotary feedback
Robust protection against EMI, RFI, and magnetic interference
Seamlessly integrates with innovative hollow shaft architecture
Extended durability through contactless capacitive sensing
Optimized compact design for low-profile applications
Engineered for longevity in extreme temperature environments

Unique Values

High precision
Immunity to Magnetic
Low Profile
Repeatability

Technical Data

Technical Data

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-22 bit
Nominal position accuracy ±0.015° / ±0.010°
Repeatability 1.4 mdeg / 4.9 Arcsec
Maximum operational speed 4,000 rpm
Measurement range Single turn, unlimited
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.2 mm
Rotor inertia 2,165 gr · mm²
Total weight 15 gr
Outer diameter / Inner diameter / Profile 60 / 25 / 8 mm
Material (stator / rotor) FR4
Nominal air gap (stator, rotor) 0.6 mm

Electrical

Supply voltage 5V ± 5%
Current consumption ~90 mA
Interconnection Connector: DF13A-10P -1.25H
Communication SSi, BiSS-C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.1-5.0 MHz
Position update rate 35 kHz (Optional - up to 375 kHz)

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature -40°C to +85°C
Storage temperature -40°C to +85°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009
Vibration endurance 20g @ 10 to 2000 Hz sweep per IEC 60068-2-6
Protection IP 40

Compact Rotary Position Sensor using absolute rotary encoder technology

Create Your Ordering code

OD
- 25 mm
- 35 mm
- 60 mm
- 80 mm
- 100 mm
- 140 mm
- 170 mm
- 247 mm
Output
- BiSS
- SSi
Resolution
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
Bit
- BIT
Shaft-turn Counter
- 4,096
- 8,192
- 16,384
- 32,768
Interconnection
- Horizontal Connector
- Vertical Connector
Rotor Type
- End Shaft - Single Screw Rotor
- Hollow Shaft Encoder

Part Number:

VLX

Request a Quote

related Accessories

Placeholder

Product VLX-247, VLX-170, VLX-140, VLX-100, VLX-80, VLX-60
Part No. CB-00088-250/500
Description
VLX cable

CB-00088-250/500

Placeholder

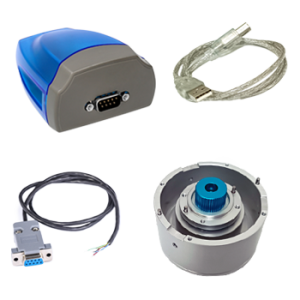

Product VLX-60
Part No. DKIT-VLX-60
Description

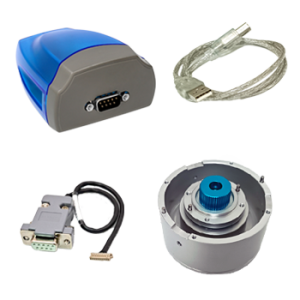

Complete kit to test VLX-60 encoder
