Home
/
Products
Three-Plate Ring - DS
Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
DS-16
16
4
8
3.1
16 bit
±0.020°
SSi / BiSS-C
DS-25
25
6
7
10
17-19 bit
±0.010°
SSi / BiSS-C
DS-37
37
10
8
10
17-19 bit
±0.015°
SSi / BiSS-C
DS-40
40
10
10
20
17-19 bit
±0.010°
SSi / BiSS-C
DS-58
58
20
10
30
18-20 bit
±0.008°
SSi / BiSS-C
DS-70
70
30
10
49
19-21 bit
±0.006°
SSi / BiSS-C
DS-90
90
50
10
55
19-21 bit
±0.006°
SSi / BiSS-C
DS-130
130
90
10
81
19-21 bit
±0.006°
SSi / BiSS-C
Two-Plate Encapsulate - DF
Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
DF-60
60
27
9
40
18-20 bit
±0.010°
SSi / BiSS-C
DF-100
100
57
10
126
18-20 bit
±0.010°
SSi / BiSS-C
DF-150
150
110
13.6
307
18-20 bit
±0.006°
SSi / BiSS-C
Shaft - DL
Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
DL-25
25
Shaft 4
24.3
30
17-19 bit
±0.020°
SSi / BiSS-C
DL-66
71
Shaft 8
29
350
18-20 bit
±0.005°
SSi / BiSS-C
Two-Plate Ring - VL
Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
VLX-60
60
25
8
14
18-20 bit
±0.010°
SSi / BiSS-C

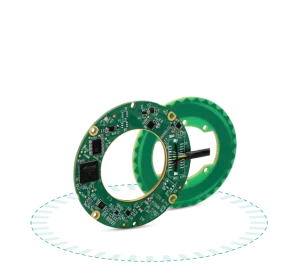

VLP-60
60
25
6
16
18-20 bit
±0.010°
SSi / BiSS-C
VLP-100
100
48
7
42
18-20 bit
±0.006°
SSi / BiSS-C
High Resolution Absolute Encoders
Ring Encoders - DS
Two-Plate Encapsulate - DF
Two-Plate Ring - VL
Shaft - DL
^
