Check the Encoder Selector
DS Harsh Environment Rotary Encoders

Hollow Shaft | Polymer Encapsulated | DS

Application | multi-purpose Applications
The DS encodes are suitable for a wide variety of applications, from advanced surgical robotics to sophisticated defence applications. The contact-less core with its floating rotor is extremely durable and resistant to vibrations and shocks. The low profile, hollow shaft structure, suits compact, high-density designs and provides unparalleled accuracy and resolution for encoders as small as 16mm to as large as 130mm.
View Products
VLX Harsh Environment Rotary Encoders

Hollow Shaft | Kit Encoder | VLX

Application | Robotics and Automation
The VLX encoders are state-of-the-art position sensors designed for a broad range of industrial automation applications and motion control, with exceptional performance to size ratio. Typical applications include highly accurate surgical robots, semi-conductor robotics, collaborative-robots, multi-axes automated machinery, as well as automotive applications. Tested to meet the most exact of industrial environmental conditions of IEC 60068-2 and feature an ‘on-the-application’ push-button automatic calibration process.
View Products
VLP Harsh Environment Rotary Encoders

Hollow Shaft | Kit Encoder | VLP

Application | Harsh environment
The VLP encoders are high performance position sensors designed specifically for harsh environment and particularly suited for a broad range of aerospace and defense applications. They are some of the most accurate kit encoders in the market, providing an exceptional performance to size ratio. Tested to meet the Mil-std-810 and fully immune to magnetic fields. They can be customized with different coatings, connectors, and wires and ENV conditions in accordance with specific requirements of each customer and application.
View Products
Shaft Rotary Encoder DL-66 Netzer

Shaft Encoder | Encapsulated | DL

Application | Ruggedized applications
The DL Electric Encoders™ provide a highly accurate and robust shaft encoder for applications that do not require a hollow-shaft sensor.
View Products
Clear Filters
DS-16 Mini Encoders Hollow Shaft Polymer Encapsulated
DS-16
OD-mm 16
ID-mm 4
Height-mm 8
weight-gr 3.1
Resolution 16 bit
Accuracy ±0.020°
Interface SSi / BiSS-C
Show More Learn More
DS-25 Miniature Absolute Rotary Encoder
DS-25
OD-mm 25
ID-mm 6
Height-mm 7
weight-gr 10
Resolution 17-19 bit
Accuracy ±0.010°
Interface SSi / BiSS-C
Show More Learn More
DS-40 Hollow Shaft Polymer Encapsulated Rotary Encoder
DS-40
OD-mm 40
ID-mm 10
Height-mm 10
weight-gr 20
Resolution 17-19 bit
Accuracy ±0.010°
Interface SSi / BiSS-C
Show More Learn More
absolute rotary encoder DS-58
DS-58
OD-mm 58
ID-mm 20
Height-mm 10
weight-gr 30
Resolution 18-20 bit
Accuracy ±0.008°
Interface SSi / BiSS-C
Show More Learn More
Hollow Shaft Polymer Encapsulated Absolute Rotary Encoder DS70
DS-70
OD-mm 70
ID-mm 30
Height-mm 10
weight-gr 49
Resolution 19-21 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
Small Hollow Shaft Polymer Encapsulated Rotary Encoder DS90
DS-90
OD-mm 90
ID-mm 50
Height-mm 10
weight-gr 55
Resolution 19-21 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
Small Hollow Shaft Polymer Encapsulated Rotary Encoder DS-130
DS-130
OD-mm 130
ID-mm 90
Height-mm 10
weight-gr 81
Resolution 19-21 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
Absolute Rotary Encoder DL-25
DL-25
OD-mm 25
ID-mm Shaft 4
Height-mm 24.3
weight-gr 30
Resolution 17-19 bit
Accuracy ±0.020°
Interface SSi / BiSS-C
Show More Learn More
Shaft Rotary Encoder -DL-66
DL-66
OD-mm 71
ID-mm Shaft 8
Height-mm 29
weight-gr 350
Resolution 18-20 bit
Accuracy ±0.005°
Interface SSi / BiSS-C
Show More Learn More
VLP-60 Small Absolute Rotary Encoder Hollow Shaft
VLP-60
OD-mm 60
ID-mm 25
Height-mm 6
weight-gr 16
Resolution 18-20 bit
Accuracy ±0.010°
Interface SSi / BiSS-C
Show More Learn More
VLP 80 Compact Rotary Encoder Hollow Shaft Rotary Encoder
VLP-80
OD-mm 80
ID-mm 35
Height-mm 6.6
weight-gr 21
Resolution 19-21 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
Absolute rotary encoder VLP-100
VLP-100
OD-mm 100
ID-mm 48
Height-mm 7
weight-gr 42
Resolution 18-20 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
Absolute rotary encoder VLP-140
VLP-140
OD-mm 140
ID-mm 90
Height-mm 8
weight-gr 80
Resolution 19-21 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
Absolute rotary encoder VLP-170
VLP-170
OD-mm 170
ID-mm 110
Height-mm 8
weight-gr 110
Resolution 19-21 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
VLP-247 Hollow Shaft Rotary Encoder Two-Plate Design
VLP-247
OD-mm 247
ID-mm 171
Height-mm 9
weight-gr 220
Resolution 18-20 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
VLR-100 Absolute Rotary Encoder
VLR-100
OD-mm 100
ID-mm 53
Height-mm 12.5
weight-gr 178
Resolution 18-20 bit
Accuracy ±0.006°
Interface SSi / BiSS-C
Show More Learn More
VLX-60 Absolute Small Rotary Encoder Hollow Shaft
VLX-60
OD-mm 60
ID-mm 25
Height-mm 8
weight-gr 14
Resolution 18-20 bit
Accuracy ±0.015° / ±0.010°
Interface SSi / BiSS-C
Show More Learn More
VLX-80 Absolute Rotary Encoder Hollow Shaft
VLX-80
OD-mm 80
ID-mm 35
Height-mm 9.6
weight-gr 33
Resolution 19-21 bit
Accuracy ±0.010° / ±0.006°
Interface SSi / BiSS-C
Show More Learn More
VLX-100 Absolute Small Rotary Encoder Hollow Shaft Two Plate
VLX-100
OD-mm 100
ID-mm 48
Height-mm 9
weight-gr 40
Resolution 18-20 bit
Accuracy ±0.010° / ±0.006°
Interface SSi / BiSS-C
Show More Learn More
VLX-140 Absolute Rotary Encoder Hollow Shaft Two Plate
VLX-140
OD-mm 140
ID-mm 90
Height-mm 10
weight-gr 72
Resolution 19-21 bit
Accuracy ±0.010° / ±0.006°
Interface SSi / BiSS-C
Show More Learn More
VLX 170 Hollow Shaft Absolute Rotary Encoder Two Plate
VLX-170
OD-mm 170
ID-mm 110
Height-mm 10
weight-gr 106
Resolution 19-21 bit
Accuracy ±0.010° / ±0.006°
Interface SSi / BiSS-C
Show More Learn More

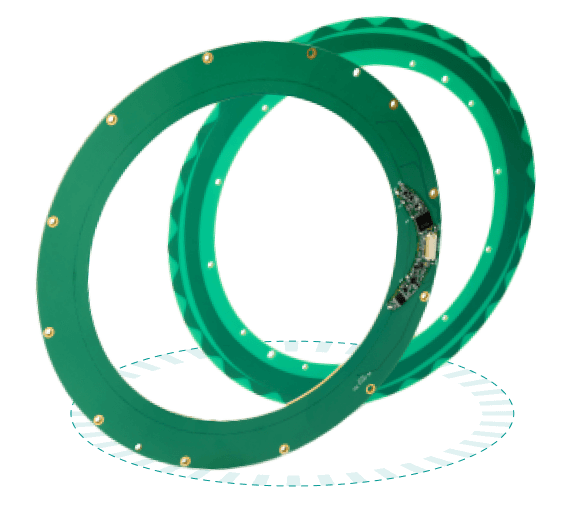

VLX 247 Hollow Shaft Rotary Encoder Two-Plate Design
VLX-247
OD-mm 247
ID-mm 171
Height-mm 10.7
weight-gr 220
Resolution 18-20 bit
Accuracy ±0.010° / 0.006°
Interface SSi / BiSS-C
Show More Learn More
Absolute Rotary Encoder VLM-60
VLM-60
OD-mm 60
ID-mm 25
Height-mm 8
weight-gr 15
Resolution 17 bit
Accuracy ±0.010°
Interface SSi
Show More Learn More
Absolute Rotary Encoder VLH-35
VLH-35
OD-mm 35
ID-mm 11
Height-mm 6
weight-gr 5.5
Resolution 17-19 bit
Accuracy ±0.05°
Interface SSi / BiSS-C
Show More Learn More
Product OD-mm ID-mm Height-mm weight-gr Resolution Accuracy Interface
Hollow Shaft | Polymer Encapsulated | DS
DS-16 Mini Encoders Hollow Shaft Polymer Encapsulated
DS-16
16
4
8
3.1
16 bit
±0.020°
SSi / BiSS-C
DS-25 Miniature Absolute Rotary Encoder
DS-25
25
6
7
10
17-19 bit
±0.010°
SSi / BiSS-C
DS-40 Hollow Shaft Polymer Encapsulated Rotary Encoder
DS-40
40
10
10
20
17-19 bit
±0.010°
SSi / BiSS-C
absolute rotary encoder DS-58
DS-58
58
20
10
30
18-20 bit
±0.008°
SSi / BiSS-C
Hollow Shaft Polymer Encapsulated Absolute Rotary Encoder DS70
DS-70
70
30
10
49
19-21 bit
±0.006°
SSi / BiSS-C
Small Hollow Shaft Polymer Encapsulated Rotary Encoder DS90
DS-90
90
50
10
55
19-21 bit
±0.006°
SSi / BiSS-C
Small Hollow Shaft Polymer Encapsulated Rotary Encoder DS-130
DS-130
130
90
10
81
19-21 bit
±0.006°
SSi / BiSS-C
Hollow Shaft | Kit Encoder | VLX
VLX-60 Absolute Small Rotary Encoder Hollow Shaft
VLX-60
60
25
8
14
18-20 bit
±0.015° / ±0.010°
SSi / BiSS-C
VLX-80 Absolute Rotary Encoder Hollow Shaft
VLX-80
80
35
9.6
33
19-21 bit
±0.010° / ±0.006°
SSi / BiSS-C
VLX-100 Absolute Small Rotary Encoder Hollow Shaft Two Plate
VLX-100
100
48
9
40
18-20 bit
±0.010° / ±0.006°
SSi / BiSS-C
VLX-140 Absolute Rotary Encoder Hollow Shaft Two Plate
VLX-140
140
90
10
72
19-21 bit
±0.010° / ±0.006°
SSi / BiSS-C
VLX 170 Hollow Shaft Absolute Rotary Encoder Two Plate
VLX-170
170
110
10
106
19-21 bit
±0.010° / ±0.006°
SSi / BiSS-C
VLX 247 Hollow Shaft Rotary Encoder Two-Plate Design
VLX-247
247
171
10.7
220
18-20 bit
±0.010° / 0.006°
SSi / BiSS-C
Absolute Rotary Encoder VLM-60
VLM-60
60
25
8
15
17 bit
±0.010°
SSi
Absolute Rotary Encoder VLH-35
VLH-35
35
11
6
5.5
17-19 bit
±0.05°
SSi / BiSS-C
Hollow Shaft | Kit Encoder | VLP
VLP-60 Small Absolute Rotary Encoder Hollow Shaft
VLP-60
60
25
6
16
18-20 bit
±0.010°
SSi / BiSS-C
VLP 80 Compact Rotary Encoder Hollow Shaft Rotary Encoder
VLP-80
80
35
6.6
21
19-21 bit
±0.006°
SSi / BiSS-C
Absolute rotary encoder VLP-100
VLP-100
100
48
7
42
18-20 bit
±0.006°
SSi / BiSS-C
Absolute rotary encoder VLP-140
VLP-140
140
90
8
80
19-21 bit
±0.006°
SSi / BiSS-C
Absolute rotary encoder VLP-170
VLP-170
170
110
8
110
19-21 bit
±0.006°
SSi / BiSS-C
VLP-247 Hollow Shaft Rotary Encoder Two-Plate Design
VLP-247
247
171
9
220
18-20 bit
±0.006°
SSi / BiSS-C
VLR-100 Absolute Rotary Encoder
VLR-100
100
53
12.5
178
18-20 bit
±0.006°
SSi / BiSS-C
Shaft Encoder | Encapsulated | DL
Absolute Rotary Encoder DL-25
DL-25
25
Shaft 4
24.3
30
17-19 bit
±0.020°
SSi / BiSS-C
Shaft Rotary Encoder -DL-66
DL-66
71
Shaft 8
29
350
18-20 bit
±0.005°
SSi / BiSS-C
DS-58 Hollow Shaft Absolute Rotary Encoder

ABSOLUTE ROTARY ENCODER | HOLLOW SHAFT Polymer Encapsulated | DS

Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
ds-table
16
4
8
3.1
16 bit
±0.020°
SSi / BiSS-C
25
6
7
10
17-19 bit
±0.010°
SSi / BiSS-C
40
10
10
20
17-19 bit
±0.010°
SSi / BiSS-C
58
20
10
30
18-20 bit
±0.008°
SSi / BiSS-C
70
30
10
49
19-21 bit
±0.006°
SSi / BiSS-C
90
50
10
55
19-21 bit
±0.006°
SSi / BiSS-C
130
90
10
81
19-21 bit
±0.006°
SSi / BiSS-C
VLX-60 Hollow Shaft Absolute Rotary Encoder

ABSOLUTE ROTARY ENCODER | HOLLOW SHAFT TWO-PLATE | VL

Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
vlx-table
60
25
8
14
18-20 bit
±0.015° / ±0.010°
SSi / BiSS-C
80
35
9.6
33
19-21 bit
±0.010° / ±0.006°
SSi / BiSS-C
100
48
9
40
18-20 bit
±0.010° / ±0.006°
SSi / BiSS-C
140
90
10
72
19-21 bit
±0.010° / ±0.006°
SSi / BiSS-C
170
110
10
106
19-21 bit
±0.010° / ±0.006°
SSi / BiSS-C
247
171
10.7
220
18-20 bit
±0.010° / 0.006°
SSi / BiSS-C
60
25
8
15
17 bit
±0.010°
SSi
35
11
6
5.5
17-19 bit
±0.05°
SSi / BiSS-C
60
25
6
16
18-20 bit
±0.010°
SSi / BiSS-C
80
35
6.6
21
19-21 bit
±0.006°
SSi / BiSS-C
100
48
7
42
18-20 bit
±0.006°
SSi / BiSS-C
140
90
8
80
19-21 bit
±0.006°
SSi / BiSS-C
170
110
8
110
19-21 bit
±0.006°
SSi / BiSS-C
247
171
9
220
18-20 bit
±0.006°
SSi / BiSS-C
100
53
12.5
178
18-20 bit
±0.006°
SSi / BiSS-C
DL 66 Shaft encoders

ABSOLUTE ROTARY ENCODER | SHAFT ENCODER | DL

Product
OD-mm
ID-mm
Height-mm
Weight-gr
Resolution
Accuracy
Interface
dl-table
25
Shaft 4
24.3
30
17-19 bit
±0.020°
SSi / BiSS-C
71
Shaft 8
29
350
18-20 bit
±0.005°
SSi / BiSS-C
