Rotary Position Encoder : High-Performance Motion Control Sensor"

VLX-140

The Netzer VLX-140 Absolute Rotary Encoder delivers up to 23-bit resolution with 0.006 mdeg accuracy, all in an ultra-thin (<10 mm), lightweight (<72g) form factor. Utilizing contactless capacitive sensing technology, it provides exceptional reliability and long-term stability, eliminating mechanical wear for superior performance.

Optimized for aerospace, robotics, defense, and high-precision automation, the VLX-140 features a hollow, low-inertia design, reducing system weight and improving dynamic response. When it comes to high-accuracy rotary feedback in a compact, cutting-edge package, the VLX-140 sets the new industry standard.

Talk to Expert

Download Assets

Features

Extreme accuracy exceeding 0.006 degrees precision
Optimized hollow shaft for enhanced dynamic response
Designed for high resistance to EMI and RFI disruptions
Wear-free operation through contactless capacitive sensing
Reliable long-term performance with durable construction
Enhanced stability with temperature drift compensation

Unique Values

Low Profile
Wide mounting
High precision
Space tested

Accuracy

±0.010° / 0.006°˚
Resolution

17-23 bit
OD

140 mm
ID

90 mm
Height

10 mm
Weight

72 gr

Technical Data

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-23 bit
Nominal position accuracy ±0.010° / ±0.006°
Repeatability 0.7 mdeg / 2.5 Arcsec
Maximum operational speed 2,000 rpm
Measurement range Single turn, unlimited
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.3 mm
Rotor inertia 88,555 gr · mm²
Total weight 72 gr
Outer diameter / Inner diameter / Profile 140 / 90 / 10 mm
Material (stator / rotor) FR4
Nominal air gap (stator, rotor) 1 mm

Electrical

Supply voltage 5V ± 5%
Current consumption ~90 mA
Interconnection Connector: DF13A-10P -1.25H
Communication SSi, BiSS-C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.1-5.0 MHz
Position update rate 35 kHz (Optional - up to 375 kHz)

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature -40°C to +85°C
Storage temperature -40°C to +85°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009
Vibration endurance 20g @ 10 to 2000 Hz sweep per IEC 60068-2-6
Protection IP 40

Create Your Ordering code

OD
- 25 mm
- 35 mm
- 60 mm
- 80 mm
- 100 mm
- 140 mm
- 170 mm
- 247 mm
Output
- BiSS
- SSi
Resolution
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
Bit
- BIT
Shaft-turn Counter
- 4,096
- 8,192
- 16,384
- 32,768
Interconnection
- Horizontal Connector
- Vertical Connector
Rotor Type
- End Shaft - Single Screw Rotor
- Hollow Shaft Encoder
Custom
- Extended Accuracy

Part Number:

VLX

Request a Quote

related Accessories

Product VLX-247, VLX-170, VLX-140, VLX-100, VLX-80, VLX-60
Part No. CB-00088-250/500
Description
VLX cable

CB-00088-250/500

Product VLX-140

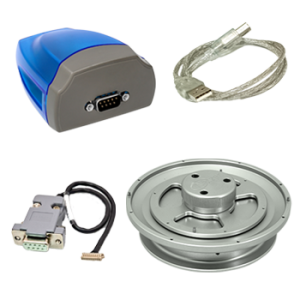

Part No. DKIT-VLX-140
Description
Complete kit to test VLX-140 encoder

DKIT-VLX-140

Product VLS-140, VLP-140, VLT-140, VLX-140
Part No. RJ-VL-140
Description
VL-140 rotating Jig

RJ-VL-140

Product VLS-140, VLP-140, VLX-140
Part No. VL-140-R-00
Description
Mylar's shim 0.1mm 10 units

VL-140-R-00
