Low Outgassing Encoder for Precision in Sensitive Environments

VLT-60

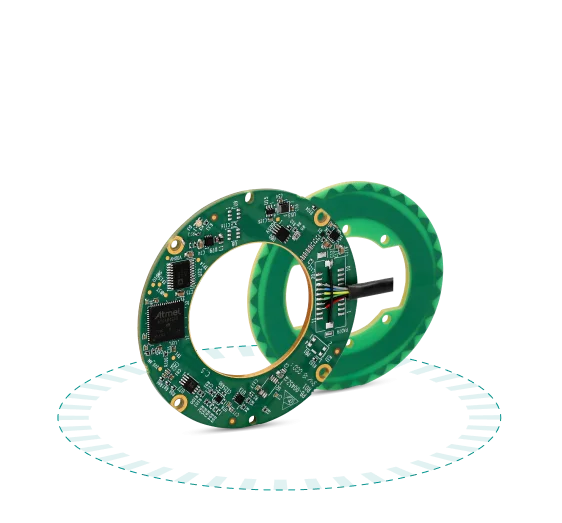

The Netzer VLT-60 Absolute Rotary Encoder delivers up to 22-bit resolution with accuracy reaching 0.01 Degree, all in an ultra-thin (<8 mm) and lightweight (<16g) form. Its contactless capacitive technology ensures reliable, wear-free performance, making it ideal for aerospace, robotics, and high-end automation.

Featuring a hollow, low-mass design, the VLT-60 simplifies integration, reduces system inertia, and enhances overall efficiency. Seeking top-tier precision in a compact form? The VLT-60 sets a new standard in rotary feedback technology.

Talk to Expert

Download Assets

Features

High-precision rotary feedback with exceptional accuracy
Superior resistance to EMI, RFI, and magnetic fields
Innovative hollow shaft structure for seamless system integration
Contactless capacitive sensing for extended durability
Optimized low-profile design for compact applications
Designed for extreme temperature durability and longevity

Unique Values

Low Profile
High precision
Wide mounting
Hollow Shaft

OD

60 mm
ID

25 mm
Height

6 mm
Weight

16 gr
Resolution

17-22 bit
Accuracy

±0.010˚

Technical Data

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-22 bit
Nominal position accuracy ±0.010°
Repeatability 1.4 mdeg / 4.9 Arcsec
Maximum operational speed 4,000 rpm
Measurement range Single Turn absolute with optional shaft turn counter
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.2 mm
Rotor inertia 2,165 gr · mm²
Total weight 16 gr
Outer Ø /Inner Ø / Height 60 / 25 / 6 mm
Material (stator / rotor) FR4
Nominal air gap (stator, rotor) 0.6 mm

Electrical

Supply voltage 5V ±5%
Current consumption ~90 mA
Interconnection Cable (standard 250mm)
Communication SSi / BiSS-C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.1- 5.0 MHz
Position update rate 35 kHz (Optional - up to 375 kHz)

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature range -55°C to +125°C
Storage temperature -55°C to +125°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009 40g 11msec saw-tooth per MIL-810G
Vibration functional 7.7grms @ 20 to 2000 Hz per MIL-810G Category 24
Protection IP 40

mall Encoder using absolute rotary encoder technology

Create Your Ordering code

OD
- 25 mm (ID - 2.2 mm)
- 60 mm (ID - 25 mm)
- 80 mm (ID - 35 mm)
- 100 mm (ID - 48 mm)
- 140 mm (ID - 90 mm)
- 170 mm (ID - 110 mm)
- 247 mm (ID - 171 mm)
Communication
- BiSS
- SSi
Resolution
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
BIT
- Disabled
- Enabled
Shaft-turn Counter
- 2,048
- 4,096
- 8,192
- 16,384
- 32,768
- None
Cable Type
- Jacket and shielded cable
- Shielded cable
- Wires only
- ESA Space Cable
Cable Length
- 250 mm Flying leads - 30AWG
- 500 mm Flying leads - 30AWG
- 750 mm Flying leads - 30AWG
- 1000 mm Flying leads - 30AWG
- 250 mm Flying leads - 28AWG
- 500 mm Flying leads - 28AWG
- 750 mm Flying leads - 28AWG
- 1000 mm Flying leads - 28AWG
Rotor Type
- Hollow Shaft Encoder
- End Shaft - Single Screw VL25
- Shaft with Insert
Coating
- Standard Conformal
- Parylene
