Extreme Accuracy Encoders for Critical Applications

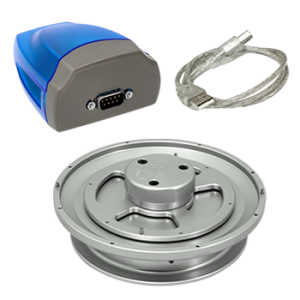

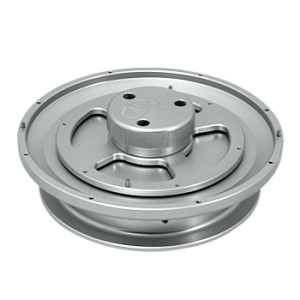

VLT-140

The Netzer VLT-140 Absolute Rotary Encoder delivers up to 23-bit resolution with 0.006 mdeg accuracy, housed in an ultra-thin (<10 mm), lightweight (<72g) form. Using contactless capacitive sensing technology, it provides exceptional reliability and long-term stability, eliminating mechanical wear for superior performance.

Optimized for aerospace, robotics, defense, and high-precision automation, the VLT-140 features a hollow, low-inertia design, reducing system weight and enhancing dynamic response. When high-accuracy rotary feedback in a compact, cutting-edge package is required, the VLT-140 sets a new industry standard.

Talk to Expert

Download Assets

Features

Extreme accuracy with precision better than 0.006 degrees
Hollow shaft for improved dynamic response
EMI and RFI resistant design
Contactless capacitive sensing for wear-free operation
Durable construction for long-term reliability
Temperature drift compensation for accuracy stability

Unique Values

Hollow Shaft
High precision
Durability
Repeatability

Accuracy

±0.006˚
Resolution

17-23 bit
OD

140 mm
ID

90 mm
Height

8 mm
Weight

80 gr

Technical Data

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-23 bit
Nominal position accuracy ±0.006°
Repeatability 0.7 mdeg / 2.5 Arcsec
Maximum operational speed 2,000 rpm
Measurement range Single turn, unlimited
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.15 mm
Allowable axial mounting tolerance ±0.3 mm
Rotor inertia 88,555 gr · mm²
Total weight 80 gr
Outer Ø / Inner Ø / Height 140 / 90 / 8 mm
Material (stator / rotor) FR4
Nominal air gap (stator, rotor) 1 mm

Electrical

Supply voltage 5V ± 5%
Current consumption ~100 mA
Interconnection Cable (standard 250mm)
Communication SSi / BiSS-C
Serial output Differential RS-422
Clock frequency 0.1-5.0 MHz
Position update rate 35 kHz (Optional - up to 375 kHz)

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature -55°C to +125°C
Storage temperature -55°C to +125°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009 40g 11msec saw-tooth per MIL-810G
Vibration functional 7.7grms @ 20 to 2000 Hz per MIL-810G Category 24
Protection IP 40

Create Your Ordering code

OD
- 25 mm
- 35 mm
- 60 mm
- 80 mm
- 100 mm
- 140 mm
- 170 mm
- 247 mm
Output
- BiSS
- SSi
Resolution
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
Bit
- BIT
Shaft-turn Counter
- 4,096
- 8,192
- 16,384
- 32,768
Cable Options
- Jacket and shielded cable
- Shielded cable
- Wires only
Cable length
- 250 mm Flying leads - 30AWG
- 500 mm Flying leads - 30AWG
- 750 mm Flying leads - 30AWG
- 1000 mm Flying leads - 30AWG
- 250 mm Flying leads - 28AWG
- 500 mm Flying leads - 28AWG
- 750 mm Flying leads - 28AWG
- 1000 mm Flying leads - 28AWG
Rotor Type
- End Shaft - Single Screw Rotor
- Hollow Shaft Encoder
Coating
- Parylene
Custom
