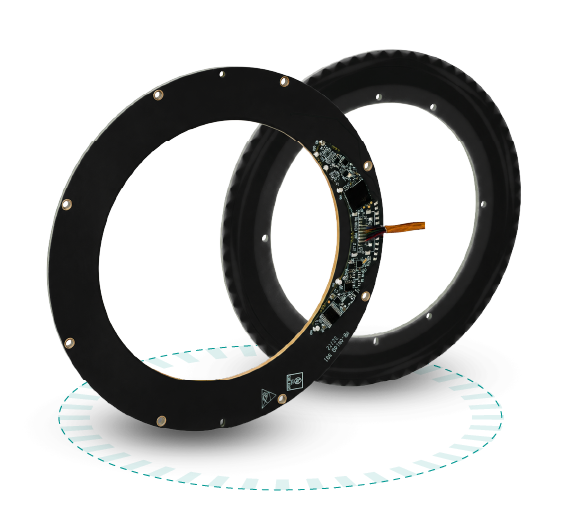

VLS-140 | ABSOLUTE ROTARY ENCODER Hollow Shaft | Kit Encoder

Features

  • High precision and low profile
  • Low power consumption
  • Space proven performance
  • Low outgassing
  • Vacuum environment: 10-5 Torr
  • Polyimide substrate
  • Parylene conformal coating
  • Innovative hollow shaft design
  • Extreme temperature durability
  • Rigorous testing & production: vibration and ESS, thermal vacuum and shock optional
Talk to an expert
OD
140 mm
ID
90 mm
Height
8 mm
Weight
80 gr
Resolution
19-21 bit
Accuracy
±0.006°

Technical Data

Ordering Code

  • Technical Drawing

  • General

    Angular resolution
    19-21 bit
    Nominal position accuracy
    ±0.006°
    Repeatability
    0.7 mdeg / 2.5 Arcsec
    Maximum operational speed
    2,000 rpm
    Measurement range
    Single-turn, unlimited. Software Shaft-turn
    Built In Test BIT
    Optional
    Rotation direction
    Adjustable CW/CCW (Default same direction from bottom side of the encoder)
  • Mechanical

    Allowable mounting eccentricity
    ±0.15 mm
    Allowable axial mounting tolerance
    ±0.3 mm
    Rotor inertia
    88,500 gr · mm²
    Total weight
    80 gr
    Outer Ø /Inner Ø / Height
    140 / 90 / 8 mm
    Material (stator / rotor)
    Polyimide
    Nominal air gap (stator, rotor)
    1 mm
  • Electrical

    Supply voltage
    5V ±5%
    Current consumption
    ~100 mA
    Interconnection
    Cable (standard 250mm)
    Communication
    SSi / BiSS-C
    Output code
    Binary
    Serial output
    Differential RS-422
    Clock frequency
    0.1- 5.0 MHz
    Position update rate
    35 kHz (Optional - up to 375 kHz)
  • Environmental

    EMC
    IEC 6100-6-2, IEC 6100-6-4
    Operating temperature range
    -40°C to +105°C (Optional +125°C)
    Storage temperature
    -55°C to +125°C
    Relative humidity
    98% Non condensing
    Shock endurance / functional
    100g 6msec saw-tooth per IEC 60068-2-27:2009 40g 11msec saw-tooth per MIL-810G
    Vibration functional
    7.7grms @ 20 to 2000 Hz per MIL-810G Category 24
    Protection
    Parylene conformal coating: improved low outgassing, reduces Tin Whiskers risk.
    Low out-gassing
    TML < 1%, CVCM < 0.1%
    Radiation tested for
    TID = 30KRAD. SEE 1E11 p/cm²/s protons @200MeV
Hollow Shaft | Kit Encoder for space VLS-140
