Miniature Encoders for High Accuracy and Motion Control

DS-25

The Netzer DS-25 Absolute Rotary Encoder builds on Netzer’s industry-leading technology, delivering 19-bit resolution and 0.01-degree accuracy in a lightweight and compact design. This contactless encoder provides wear-free, long-term operation for high-end industrial, aerospace, and robotic applications. Its hollow, low-mass structure enhances system dynamics while reducing overall weight, making it perfect for applications that demand uncompromising precision and reliability.

Talk to Expert

Download Assets

Features

Compact, lightweight design for minimal system impact
High precision rotary feedback with exceptional repeatability
Low power consumption for efficient energy usage
Excellent resistance to EMI and magnetic interference
Designed for extended service life and minimal maintenance

Unique Values

Small Size
High precision
Light weigth
Repeatability

Accuracy

±0.010˚
Resolution

17-19 bit
OD

25 mm
ID

6 mm
Height

7 mm
Weight

10 gr

Technical Data

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-19 bit
Nominal position accuracy ±0.020°
Nominal position extended accuracy (EA) ±0.010°
Repeatability 2.7 mdeg / 9.9 Arcsec
Maximum operational speed 4,000 rpm
Measurement range Single turn absolute position
Build In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.1 mm
Rotor inertia 11 gr · mm²
Total weight 10 gr
Outer Ø /Inner Ø / Height 25 / 6 / 7 mm
Material (stator / rotor) Ultem™ polymer / TRVX-50

Electrical

Supply voltage 5V ±5%
Current consumption ~90 mA
Interconnection #30 shielded cable
Communication SSi / BiSS - C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.1- 5.0 MHz
Position update rate 35 kHz (Optional - up to 375 KHz)

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature -40°C to +85°C
Storage temperature -50°C to +85°C
Relative humidity 98% Non condensing
Shock endurance / functional 100 g for 11 ms / 40g 11ms (per MIL-STD-810G)
Vibration functional 20 g 10 – 2000 Hz (per MIL-STD-810G)
Protection IP 40

Create Your Ordering code

OD
Output
Resolution
Bit
Cable Options
Interconnection
Rotor Type
Custom

Part Number:

Request a Quote

related Accessories

Product DS-25
Part No. DKIT-DS-25
Description
Complete kit to test DS 25 encoder

DKIT-DS-25

Product DS-25
Part No. DS-25-R-00
Description
ST.ST's shim: 0.05 mm, 10 units

DS-25-R-00

Product DS-25
Part No. DS-25-R-03
Description
ST.ST's shim: 0.1 mm, 10 units

DS-25-R-03

Product DS-25
Part No. DS-25-R-04
Description
ST.ST's shim: 0.2 mm, 10 units

DS-25-R-04

Product DS-90, DS-58, DS-25
Part No. EAPK005
Description

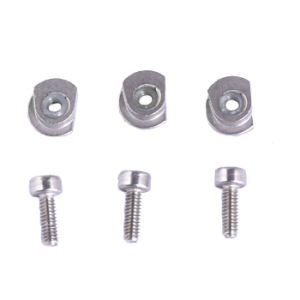

Mounting clamps

EAPK005

Product DS-25
Part No. MA-DS25-004
Description
stepped and end shaft Kit

MA-DS25-004

Product DS-58, DS-40, DS-25
Part No. RJ-DS-25, 37, 40, 58
Description
DS-25,37,40,58 rotating Jig

RJ-DS-25, 37, 40, 58
