Angle Encoder with High-Precision Feedback for CNC Systems

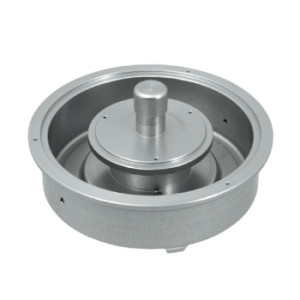

VLZ-100

The Netzer VLZ-100 Absolute Rotary Encoder delivers up to 26-bit resolution with outstanding ±0.001-degree accuracy and ±1 arc-second repeatability.

Its hollow shaft design enables easy integration and flexible routing of cables or optics through the center, simplifying system architecture.

Designed for the most demanding applications, it offers ultra-low latency under 1 µs and a super-high MTBF for maximum reliability.

The VLZ-100 is the perfect fit for rotary stages, precision milling centers, and high-end semiconductor equipment, redefining what’s possible in absolute position sensing.

Talk to Expert

Download Assets

Features

Low Installation Sensitivity – Axial Tolerance ±0.2 mm to 0.03 mm: Allows quick and precise setup without complex alignment.
Instant Response – Latency Under 1 µs: Fast performance across multiple interfaces including AqB, BiSS-C, SSI, RS-485, and SPI.
Smart Diagnostics – Built-in BIT, Error, and Warning Detection: Includes IMU-based shock and vibration monitoring for continuous system health.
Flexible Mounting – On-Clamp or Bearing-Like Installation: Space-saving design for easy integration.
Magnetic Immune – Unaffected by EMI and Magnetic Fields: Ideal for direct-drive motors, magnetic fields, and surgical energy environments.
Built-In IMU – Advanced Rotation Diagnostics: Provides real-time motion and temperature data for enhanced performance monitoring.

Unique Values

Hollow Shaft
High precision
Durability
Wide mounting

OD

105 mm
ID

48 mm
Height

12.5 mm
Weight

450 gr
Resolution

17-26 bit
Accuracy

±0.001˚

Technical Data

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-26 bit
Nominal position accuracy ±0.001°
Repeatability 0.278 mdeg / 1 Arcsec
Maximum operational speed Up to 6,000 rpm
Measurement range Single Turn Absolute with optional shaft turn counter
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.2 mm
Rotor inertia 51,191 gr · mm²
Total weight 830 gr
Outer Ø /Inner Ø / Height 175 / 110 / 12.5 mm
Material (stator / rotor) FR4 + Stainless Steel/Aluminum
Nominal air gap (stator, rotor) 1 mm
Starting Torque 0

Electrical

Supply voltage 5V ± 5%
Current consumption ~250mA
Interconnection Cable (standard 250mm)
Communication SSi / BiSS-C / AqB/ RS485 / SPI
Serial output Differential RS-422
Clock frequency 0.1-5.0 MHz
Position update rate 50 kHz

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature -40°C to +85°C
Storage temperature -55°C to +100°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009 40g 11msec saw-tooth per MIL-810G
Vibration functional 7.7grms @ 20 to 2000 Hz per MIL-810G Category 24
Protection IP 40
