VLX-35

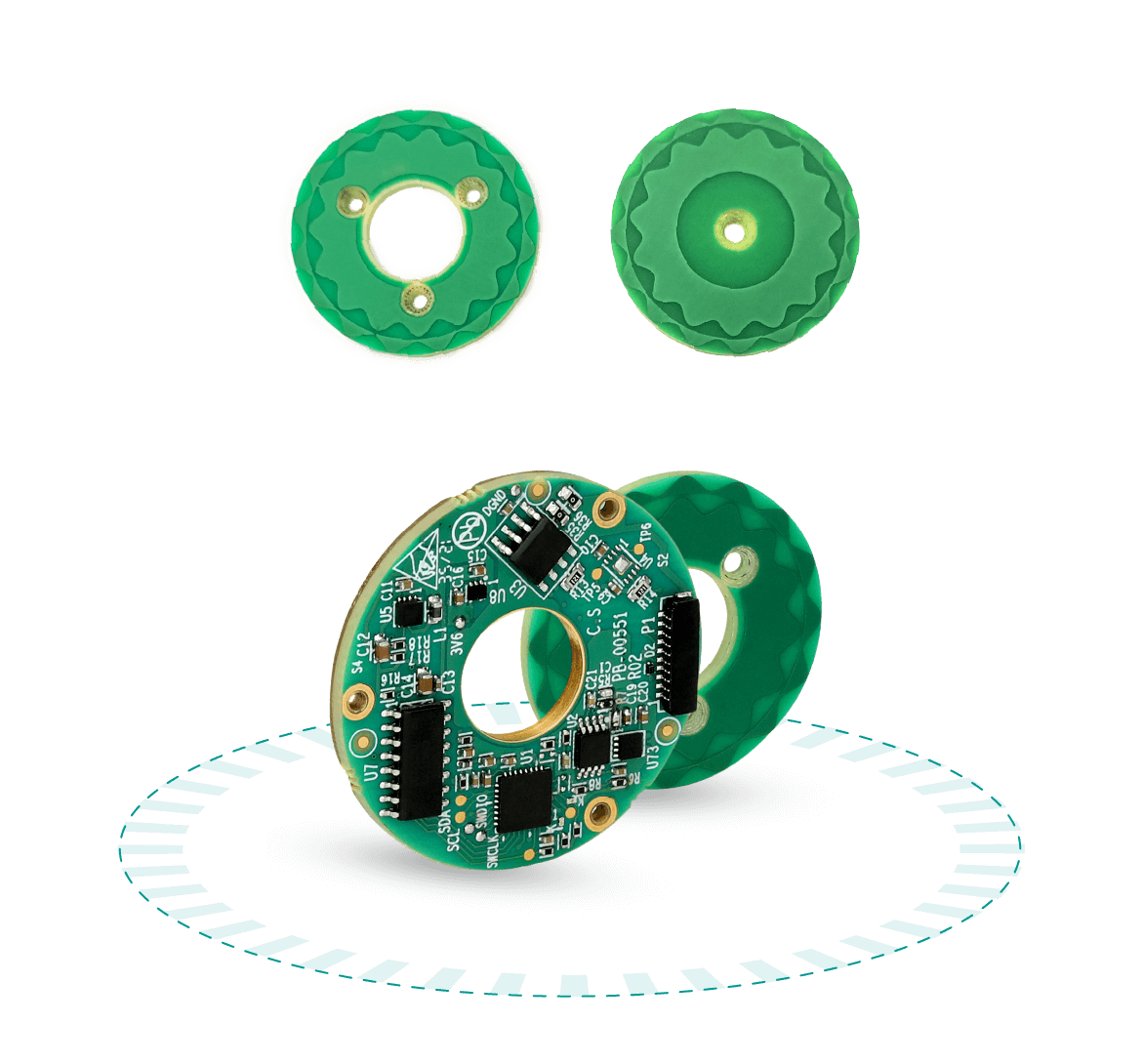

The Netzer VLX-35 Absolute Rotary Encoder delivers up to 19-bit resolution with 0.035 Degree accuracy in an ultra-thin (<7 mm) and ultra-lightweight (<8g) design, making it one of the smallest high-performance encoders available. Built with contactless capacitive sensing technology, it ensures wear-free operation for long-term reliability in precision motion control systems.

Engineered for aerospace, robotics, medical devices, and compact automation systems, the VLX-35’s hollow, low-inertia structure reduces system weight and enhances dynamic response. If you need high-accuracy rotary feedback in the most compact form factor, the VLX-35 is the ultimate solution for space-sensitive designs.

Talk to Expert

Download Assets

Features

Miniature high-precision absolute rotary encoder
Exceptional resilience to electromagnetic and radio frequency interference
Wear-free performance with contactless sensing technology
Optimized mounting flexibility through hollow shaft design
Seamless system integration with an ultra-thin, lightweight build
Advanced temperature drift compensation for enhanced stability

Unique Values

Small Size
Immunity to Magnetic
Hollow Shaft
Light weigth

OD

35 mm
ID

11 mm
Height

6 mm
Weight

7 gr
Resolution

17-19 bit
Accuracy

±0.035˚

Technical Data

Technical Drawing

Download Assets

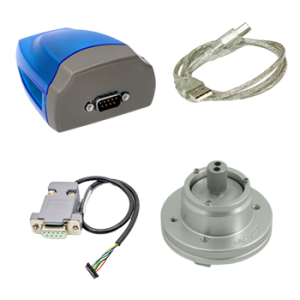

Ordering Code

General

Angular resolution 17-19 bit
Nominal position accuracy ±0.035°
Repeatability 2.7 mdeg / 9.9 Arcsec
Maximum operational speed 6,000 rpm
Measurement range Single Turn absolute with optional shaft turn counter
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder

Mechanical

Allowable mounting eccentricity ±0.1 mm
Allowable axial mounting tolerance ±0.2 mm
Rotor inertia 1,930 gr · mm²
Total weight 7 gr
Outer Ø / Inner Ø / Height 35 / 11 / 6 mm
Material (stator, rotor) PCB (FR4)
Nominal air gap (stator, rotor) 0.6 mm +/- 0.2 mm

Electrical

Supply voltage 5V ± 5%
Current consumption ~90 mA

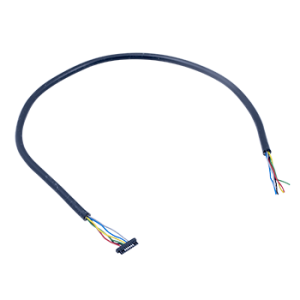

Interconnection Connector: DF52-10S -0.8H
Communication SSi / BiSS-C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.2-3.0 MHz
Position update rate 28 kHz

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature -40°C to +85°C
Storage temperature -40°C to +85°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009
Vibration endurance 20g @ 10 to 2000 Hz sweep per IEC 60068-2-6
Protection IP 40
