Absolute Encoder Disk VLS-100 | Rugged Hollow Shaft Design

VLS-100

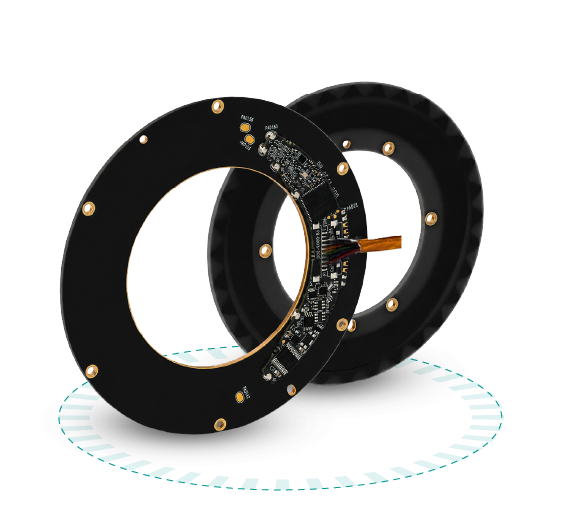

The Netzer VLS-100 absolute rotary encoder provides up to 22-bit resolution with 0.006 Degree accuracy in an ultra-thin (<6.2 mm), lightweight (<42g) design. Engineered for space missions, semiconductor tools, and contamination-free environments, it ensures high-reliability, wear-free operation. The hollow, low-inertia structure minimizes system mass and improves dynamic response, making it ideal for high-precision optical positioning and cleanroom-compatible robotics.

Engineered for space and photonics, Netzer’s VLS absolute rotary encoders are field-proven in APT mechanisms and optical links—OISLs, FSO, DSOC, and ISLs. The VLS series combines non-contact capacitive technology, low mass, and high resolution to deliver precise position feedback for fine pointing, fast acquisition, and rock-steady tracking in satellite terminals and gimbaled payloads.

Talk to Expert

Download Assets

Features

COTS space-tested to ensure robust performance in harsh conditions
Superior repeatability with high-precision feedback
Zero wear operation with contactless capacitive sensing
Enhanced mounting tolerance via hollow shaft design
Compact, low-profile form factor for seamless integration
Exceptional resistance to EMI, RFI, and magnetic fields

Unique Values

Space tested
High precision
Hollow Shaft
Contact less

OD

100 mm
ID

48 mm
Height

6.2 mm
Weight

42 gr
Resolution

17-22 bit
Accuracy

±0.006°˚

Technical Data

Download Assets

Ordering Code

General

Angular resolution 17-22 bit
Nominal position accuracy ±0.006°
Repeatability 0.7 mdeg / 2.5 Arcsec
Maximum operational speed 4,000 rpm
Measurement range Single Turn Absolute with optional shaft turn counter
Built In Test BIT Optional
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Allowable mounting eccentricity ±0.2 mm
Allowable axial mounting tolerance ±0.2 mm
Rotor inertia 17,928 gr · mm²
Total weight 42 gr
Outer Ø /Inner Ø / Height 100 / 48 / 6.2 mm
Material (stator / rotor) Polyimide
Nominal air gap (stator, rotor) 1 mm

Electrical

Supply voltage 5V ±5%
Current consumption ~90 mA
Interconnection Cable (standard 250mm)
Communication SSi / BiSS-C
Output code Binary
Serial output Differential RS-422
Clock frequency 0.1- 5.0 MHz
Position update rate 35 kHz (Optional - up to 375 kHz)

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature range -40°C to +105°C (Optional -55°C to +125°C)
Storage temperature -55°C to +125°C
Relative humidity 98% Non condensing
Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009 40g 11msec saw-tooth per MIL-810G
Vibration functional 7.7grms @ 20 to 2000 Hz per MIL-810G Category 24
Protection Parylene conformal coating: improved low outgassing, reduces Tin Whiskers risk.
Low out-gassing TML < 1%, CVCM < 0.1%
Radiation tested for TID = 30KRAD. SEE 1E11 p/cm²/s protons @200MeV

Create Your Ordering code

OD
- 25 mm (ID - 2.2 mm)
- 59.7 mm (ID - 25 mm)
- 80 mm (ID - 35 mm)
- 100 mm (ID - 48 mm)
- 140 mm (ID - 90 mm)
- 170 mm (ID - 110 mm)
- 247.7 mm (ID - 171.4 mm)
Communication
- BiSS
- SSi
Resolution
- 17 bit
- 18 bit
- 19 bit
- 20 bit
- 21 bit
- 22 bit
- 23 bit
BIT
- Disabled
- Enabled
Shaft-turn Counter
- 2,048
- 4,096
- 8,192
- 16,384
- 32,768
- None
Cable Type
- Jacket and shielded cable
- Shielded cable
- Wires only
- ESA Space Cable
Cable Length
- 250 mm Flying leads - 28AWG
- 500 mm Flying leads - 28AWG
- 750 mm Flying leads - 28AWG
- 1000 mm Flying leads - 28AWG
Rotor Type
- Hollow Shaft Encoder
- End Shaft - Single Screw VL25
- Shaft with Insert
Custom
- High Temperature
