Miniature Absolute Encoder

VLP-35

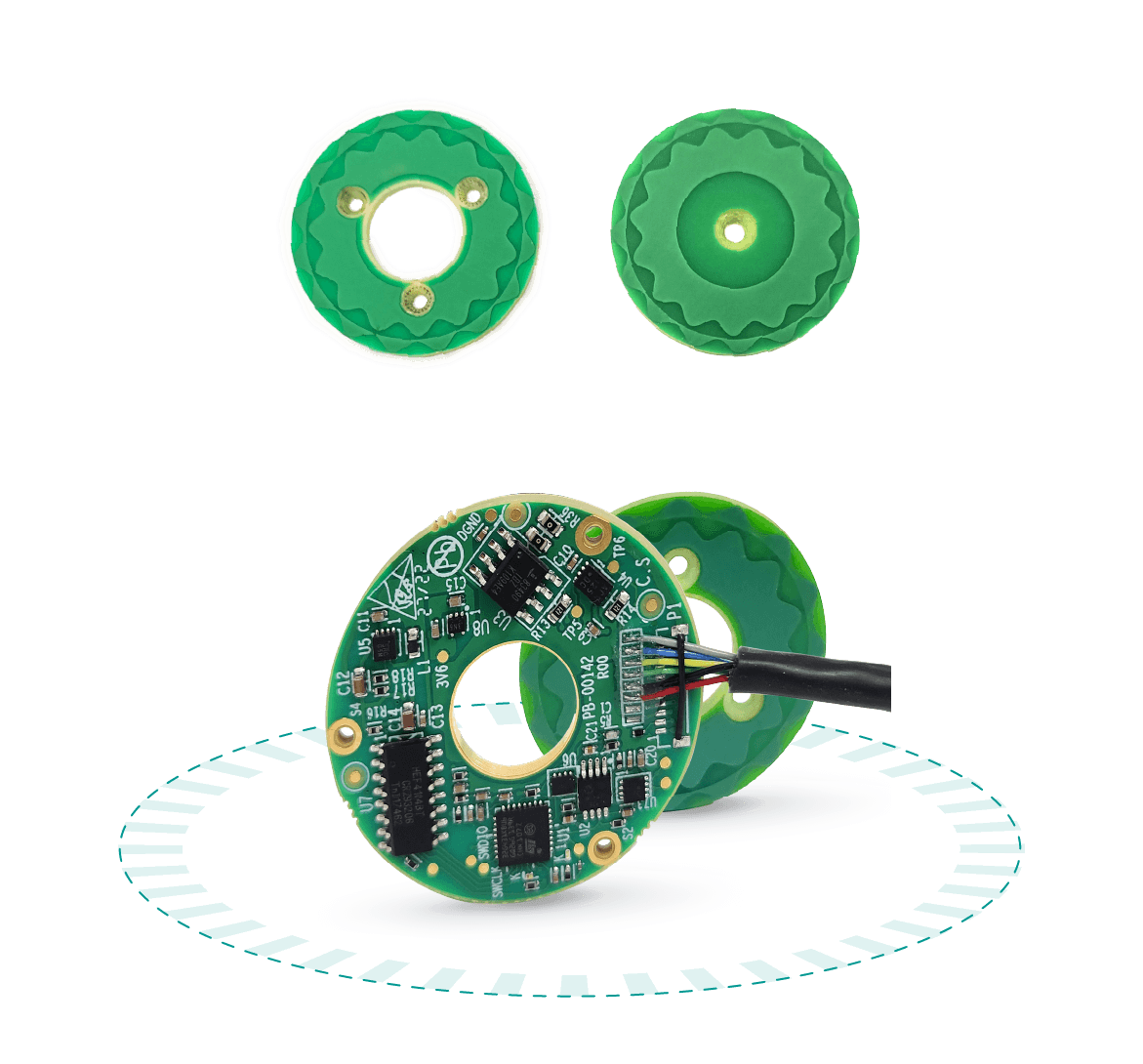

The Netzer VLP-35 Absolute Rotary Encoder delivers up to 19-bit resolution with 0.035 Degree accuracy in an ultra-thin (<7 mm) and ultra-lightweight (<8g) package, making it one of the smallest high-performance encoders available. Built with contactless capacitive sensing technology, it ensures wear-free operation for long-term reliability in precision motion control systems.


Optimized for aerospace, robotics, medical devices, and compact automation systems, the VLP-35’s hollow, low-inertia structure minimizes system weight and enhances dynamic response. If high-accuracy rotary feedback in a compact form factor is required, the VLP-35 offers an unparalleled solution for space-sensitive applications.

Talk to Expert
Download Assets

Features

  • High tolerance to electromagnetic and radio frequency interference
  • Miniature, high-precision absolute rotary encoder
  • Contactless operation for wear-free performance
  • Hollow shaft design with optimized mounting flexibility
  • Ultra-thin and lightweight structure for seamless integration
  • Advanced temperature drift compensation for stability

Unique Values

  • High precision
  • Light weigth
  • Hollow Shaft
  • MTBF 15
  • OD
    35 mm
  • ID
    11 mm
  • Height
    6.2 mm
  • Weight
    10.4 gr
  • Resolution
    17-19 bit
  • Accuracy
    ±0.035˚
Technical Data
Technical Data
Technical Drawing
Download Assets
Ordering Code

General

  • Angular resolution 17-19 bit
  • Nominal position accuracy ±0.035°
  • Repeatability 1.4 mdeg / 4.9 Arcsec
  • Maximum operational speed 6,000 rpm
  • Measurement range Single Turn Absolute with optional shaft turn counter
  • Built In Test BIT Optional
  • Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

  • Allowable mounting eccentricity ±0.1 mm
  • Allowable axial mounting tolerance ±0.2 mm
  • Rotor inertia 177 gr · mm²
  • Total weight 10.4 gr (Including 250mm cable)
  • Outer Ø /Inner Ø / Height 35 / 11 / 6.2 mm
  • Material (stator / rotor) FR4
  • Nominal air gap (stator, rotor) 0.6 mm

Electrical

  • Supply voltage 5V ±5%
  • Current consumption ~90 mA
  • Interconnection Cable (standard 250mm)
  • Communication SSi / BiSS-C
  • Output code Binary
  • Serial output Differential RS-422
  • Clock frequency 0.1- 5.0 MHz
  • Position update rate 28 kHz

Environmental

  • EMC IEC 6100-6-2, IEC 6100-6-4
  • Operating temperature range -40°C to +105°C
  • Storage temperature -55°C to +125°C
  • Relative humidity 98% Non condensing
  • Shock endurance / functional 100g 6msec saw-tooth per IEC 60068-2-27:2009 40g 11msec saw-tooth per MIL-810G
  • Vibration functional 7.7grms @ 20 to 2000 Hz per MIL-810G Category 24
  • Protection IP 40
Miniature Absolute Encoder using absolute rotary encoder technology

Create Your Ordering code

  • OD
    • 13.5 mm (ID - 2.2 mm)
    • 25 mm (ID - 2.2 mm)
    • 35 mm (ID - 11 mm)
    • 60 mm (ID - 25 mm)
    • 80 mm (ID - 35 mm)
    • 100 mm (ID - 48 mm)
    • 140 mm (ID - 90 mm)
    • 170 mm (ID - 110 mm)
    • 247 mm (ID - 171 mm)
  • Communication
    • BiSS
    • SSi
  • Resolution
    • 14 bit
    • 15 bit
    • 17 bit
    • 18 bit
    • 19 bit
    • 20 bit
    • 21 bit
    • 22 bit
    • 23 bit
  • BIT
    • Disabled
    • Enabled
  • Shaft-turn Counter
    • 2,048
    • 4,096
    • 8,192
    • 16,384
    • 32,768
    • None
  • Cable Type
    • Jacket and shielded cable
    • Shielded cable
    • Wires only
    • **For ESA standard cable contact us.
  • Cable Size
    • 250 mm Flying leads - 30AWG
    • 500 mm Flying leads - 30AWG
    • 750 mm Flying leads - 30AWG
    • 1000 mm Flying leads - 30AWG
    • 250 mm Flying leads - 28AWG
    • 500 mm Flying leads - 28AWG
    • 750 mm Flying leads - 28AWG
    • 1000 mm Flying leads - 28AWG
    • To add a connector contact us
  • Rotor Type
    • End Shaft - Single Screw
    • End Shaft - Single Screw Rotor
    • Hollow Shaft Encoder
  • Coating
    • Standard Conformal
    • Parylene
Part Number:
VLP
Request a Quote

related Accessories

Placeholder
  • Product VLP-35
  • Part No. DKIT-VLP-35
  • Description

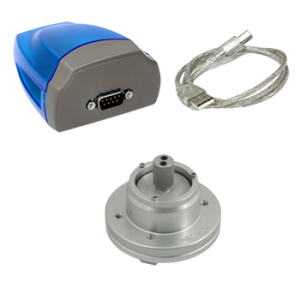

    Complete kit to test VLP-35 encoder

Placeholder
  • Product VLP-35
  • Part No. DKIT-VLP-35-E1
  • Description

    Complete kit to test VLP-35 encoder

Placeholder
  • Product VLP-35, VLX-35
  • Part No. RJ-VL-35
  • Description

    VL-35 rotating Jig

Placeholder
  • Product VLP-35, VLX-35
  • Part No. RJ-VL-35-E1
  • Description

    VL-35 rotating Jig
