Netzer DL-27 Absolute Rotary Encoder – Drop-In Replacement for MOOG 11-BHW

The Netzer DL-27 Absolute Rotary Encoder is a high-precision shafted encoder designed as a direct drop-in replacement for the MOOG 11-BHW. With advanced contactless capacitive technology, the DL-27 delivers 19-bit resolution and outstanding 0.015-degree accuracy, ensuring reliable performance in the most demanding motion control environments.

Optimized for aerospace, robotics, defense systems, and industrial automation, the DL-27 combines rugged durability with seamless system integration. Its shafted configuration matches the mechanical footprint of the MOOG 11-BHW, simplifying upgrades and minimizing downtime.

Talk to Expert

Download Assets

Features

19-bit resolution for high-precision motion control
Robust shafted design for stable and accurate feedback
EMI, RFI, and magnetic interference-resistant architecture
Precision-machined shaft system for high durability and minimal wear
Optimized for compact industrial and robotic applications

Unique Values

High precision
Light weigth
Ressitance to shock
Immunity to Magnetic

OD

27 mm
ID

4 mm
Weight

30 gr
Resolution

17-19 bit
Accuracy

±0.015˚

Technical Data

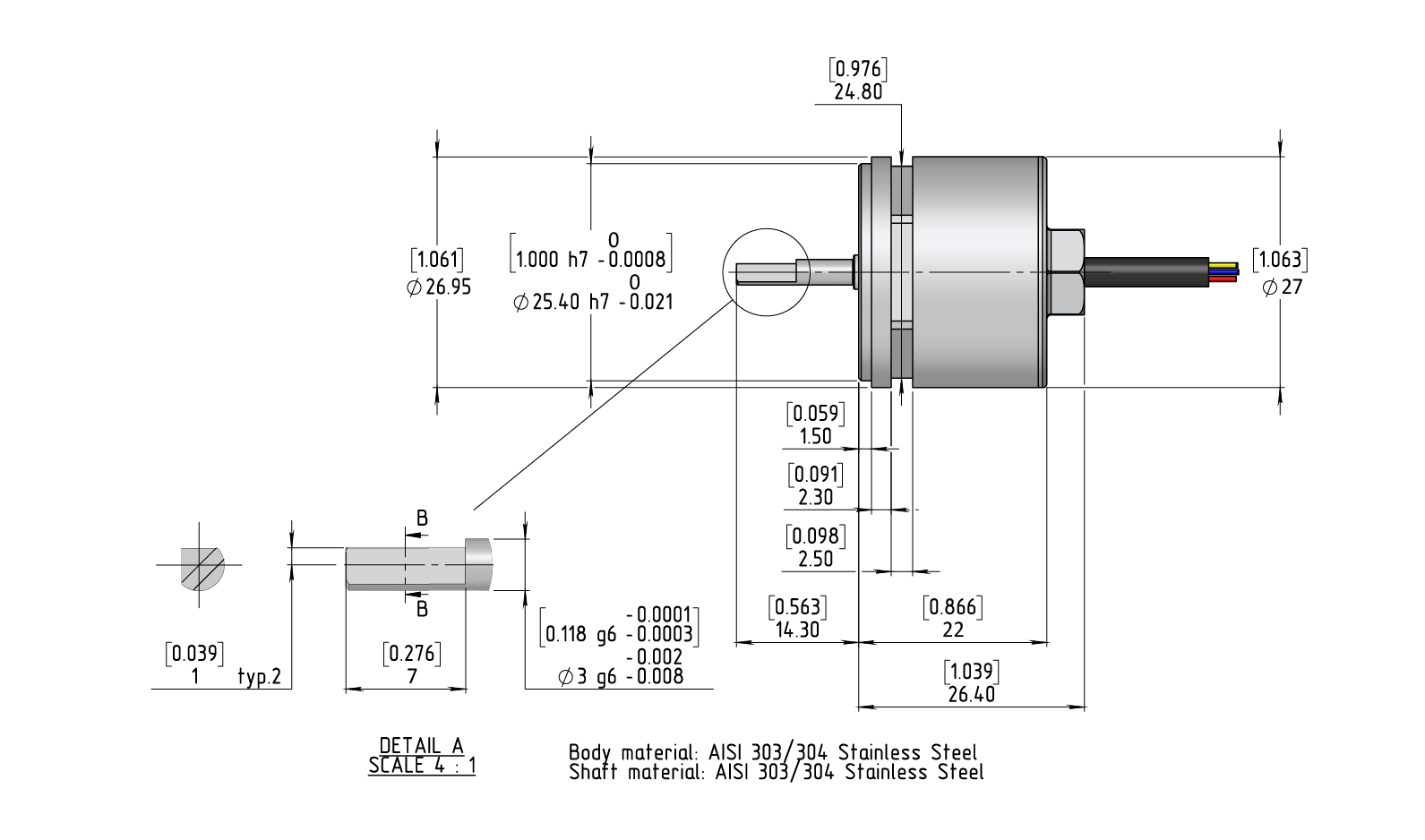

Technical Drawing

Download Assets

Ordering Code

General

Angular resolution 17-19 bit
Extended accuracy static error ±0.015°
Repeatability 2.7 mdeg / 9.9 Arcsec
Maximum operational speed 1,500 rpm
Measurement Single turn absolute position
Rotation direction Adjustable CW/CCW (Default same direction from bottom side of the encoder)

Mechanical

Starting torque 30 x 10-4 N.m
Shaft radial force (max) 100 N
Total weight 30 gr
Outer diameter / Profile / Shaft 27 / 24.3 / 4 mm
Material (case, shaft) Aluminum / Stainless steel

Electrical

Supply voltage 5V ± 5%
Current consumption 90 mA
Interconnection Shielded cable
Cable length 1,500 mm MAX
Interface SSi / BiSS - C
Output code Binary
Serial output Differential RS-422
Clock Differential RS-422
Clock frequency 0.1 ÷ 5.0 MHz
Position update rate (Max) 35 KHz

Environmental

EMC IEC 6100-6-2, IEC 6100-6-4
Operating temperature range -40°C to +85°C
Storage temperature -50°C to +100°C
Shock endurance 100 g for 11 ms
Vibration endurance 20 g 10 – 2000 Hz
Protection IP 65

Miniature Rotary Encoder using absolute rotary encoder technology
