Absolute Encoders for CNC Applications

Industry CNC / CMM

Homepage > Applications > Industry > CNC / CMM
Industry Applications

CNC / CMM

Breaking Boundaries – Redefining Performance

For too long, high-end optical encoders have set the bar – until now. VLZ is rewriting the rules with cutting-edge capacitive technology, delivering unprecedented 1 milli-degree accuracy without the sensitivity of optics. With contactless operation, EMI and Magnetic field resistance, and unbeatable durability in harsh environments, VLZ thrives where others fail.

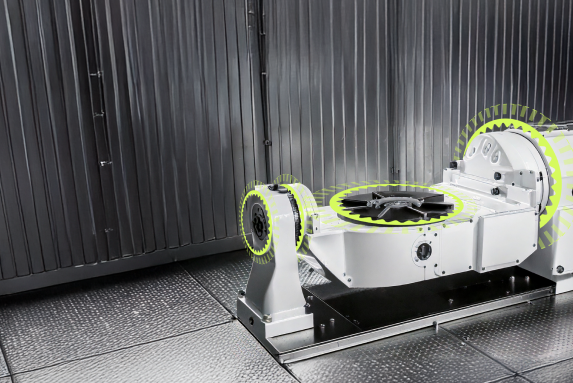

Installation is effortless, both surface mount or “Bearing like” configurations, making high precision positioning more accessible than ever. The future isn’t optical – it’s VLZ. From Rotary stages and Tilting beds of milling centres to High-end Semiconductor equipment under vacuum, VLZ brings next-level precision with unique features and capabilities never seen before. Whether in the factory, lab or beyond.

Load More

Features

  • Fast, Easy Installation

    Axial tolerance (±0.2 to 0.03 mm) ensures quick, precise setup.



  • <1μs-Latency Feedback

    Instant response across SSi, Biss C, AqB, RS485, and SPI.



  • Smart Diagnostics

    BIT warnings, error detection, and IMU-based vibration/shock monitoring.



  • Flexible Mounting

    Choose a clamp-on or space-saving bearing-like installation.



  • Magnetic-Immune

    Unaffected by EMI, magnetic fields, and surgical energy, ideal for direct-drive motors.



Load More

Unique Values

High Precision
Low Profile
Contactless
Resistance to Electric Shocks

Electrical

Supply voltage
5V ±5%
Current consumption
~200 mA
Communication
SSi, Biss C, AqB, RS485, and SPI
Clock frequency
0.1-5.0 MHz
Material
(stator/rotor)
S/ Steel / Aluminum
Position update rate
35 kHz (Optional 375 kHz)

Environment

EMC
IEC 6100-6-2, IEC 6100-6-4
*Operating temp.
-40˚C to +105˚C*
Storage temp.
-55˚C to +125˚C
Relative humidity
98% Non Condensing
Bulit In Test BIT
Optional
Position
IP 40
Vibration
7.7 grms @ 20 to Hz (per MIL-810G
Shock
100g 6msec saw-tooth (per IEC 60068-2-27:2009)

* Extended optional
